Εκπαιδευτής κινητήρα αυτοκινήτων
Created with Pixso. Car Educational Equipment Of Engine Electrical Control System

Car Educational Equipment Of Engine Electrical Control System

Ονομασία μάρκας: Zhongcai
Αριθμός μοντέλου: ZC-QCA07A
Μούβ: 1
Τιμή: Negotiatable
Χρόνος παράδοσης: 15-25Work Days
Όροι πληρωμής: T/T
Λεπτομέρειες
Place of Origin:
Guangdong,China
Πιστοποίηση:
IS09001/CE
Material:
Metal
Customizable:
OEM
Panel Cabinet:
1.5mm cold plate stamping
Weight:
200kg
Training Topics:
Operation, Maintenance, Troubleshooting
Frequency:
50Hz
Application:
Office School Multimedia Machine
Feature:
Education Training
Working Temperature:
-40 ℃~ + 50 ℃
Language:
OEM Customized
Packaging Details:
Wooden Box
Supply Ability:
1000
Περιγραφή προϊόντων

1. Product Overview

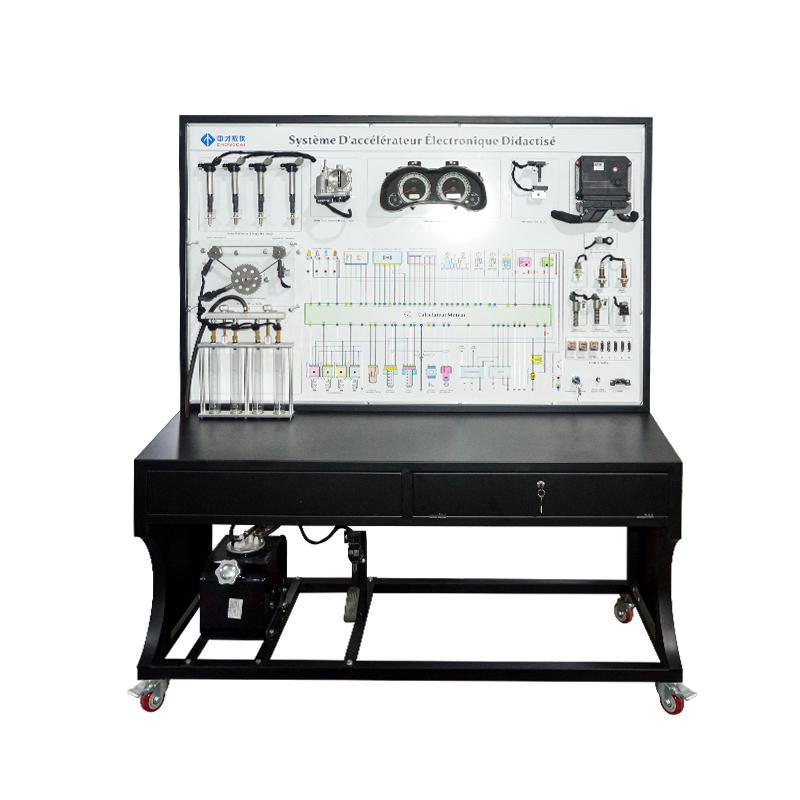

This Automotive Training Equipment is an advanced engine training model based on the Toyota Corolla 1ZR-FE engine’s electronic control system. Designed as a Petrol Engine Training Bench, it provides hands-on learning for automotive education equipment programs, allowing students to study engine electronic acceleration systems in detail.

2. Key Features

  • Real Operational Engine System: Simulates engine functions, including spark ignition, fuel injection, and throttle control via an electronic accelerator pedal.

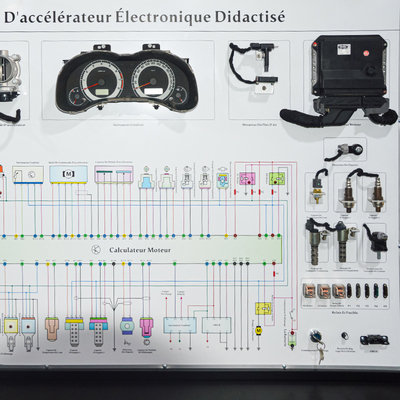

  • Interactive Learning Panel: Features a 4mm aluminum-plate circuit diagram for durability and clear visualization of automotive electrical circuits.
  • Diagnostic & Testing Capabilities:
    • Equipped with test terminals for measuring voltage, resistance, and frequency signals.
    • Includes an OBD-II port for fault code reading and diagnostics using standard scanners.
  • Durable Construction:
    • Heavy-duty steel frame with anti-corrosion coating and lockable casters.
    • 220V AC to 12V DC power supply with short-circuit protection.

3. Technical Specifications & Configurations

Parameter Specification
Dimensions 1600×800×1800mm (L×W×H)
Power Supply AC 220V → DC 12V
Key Components ECU, throttle body, fuel pump, injectors, spark plugs
Mobility Lockable casters for easy relocation
Included Components Quantity
Fuel System (Pump, Injectors) 1 set
Ignition System (ECU, Sensors) 1 set
Fault Simulation Module 1 set
Mobile Training Stand 1 unit

Car Educational Equipment Of Engine Electrical Control System 0

Car Educational Equipment Of Engine Electrical Control System 1

Car Educational Equipment Of Engine Electrical Control System 2

Car Educational Equipment Of Engine Electrical Control System 3

Car Educational Equipment Of Engine Electrical Control System 4

Car Educational Equipment Of Engine Electrical Control System 5

Car Educational Equipment Of Engine Electrical Control System 6

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
